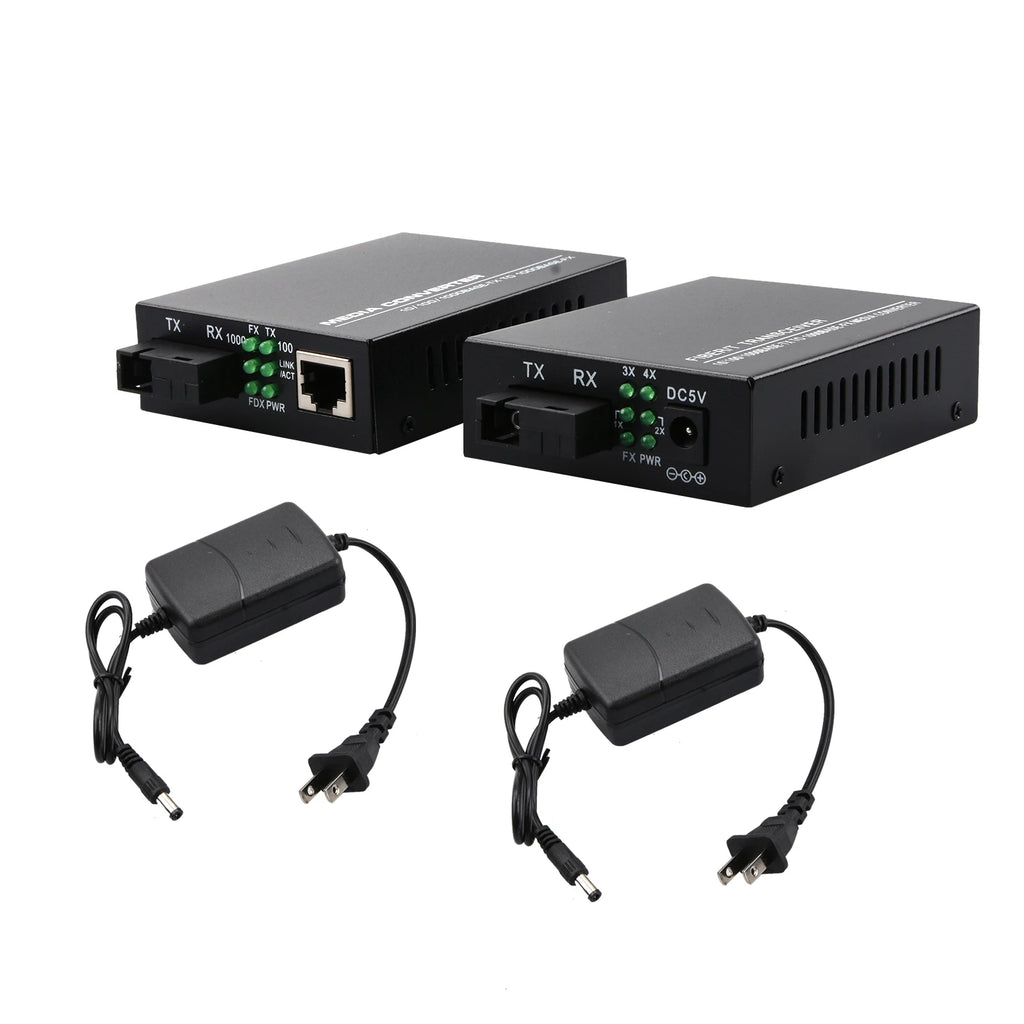

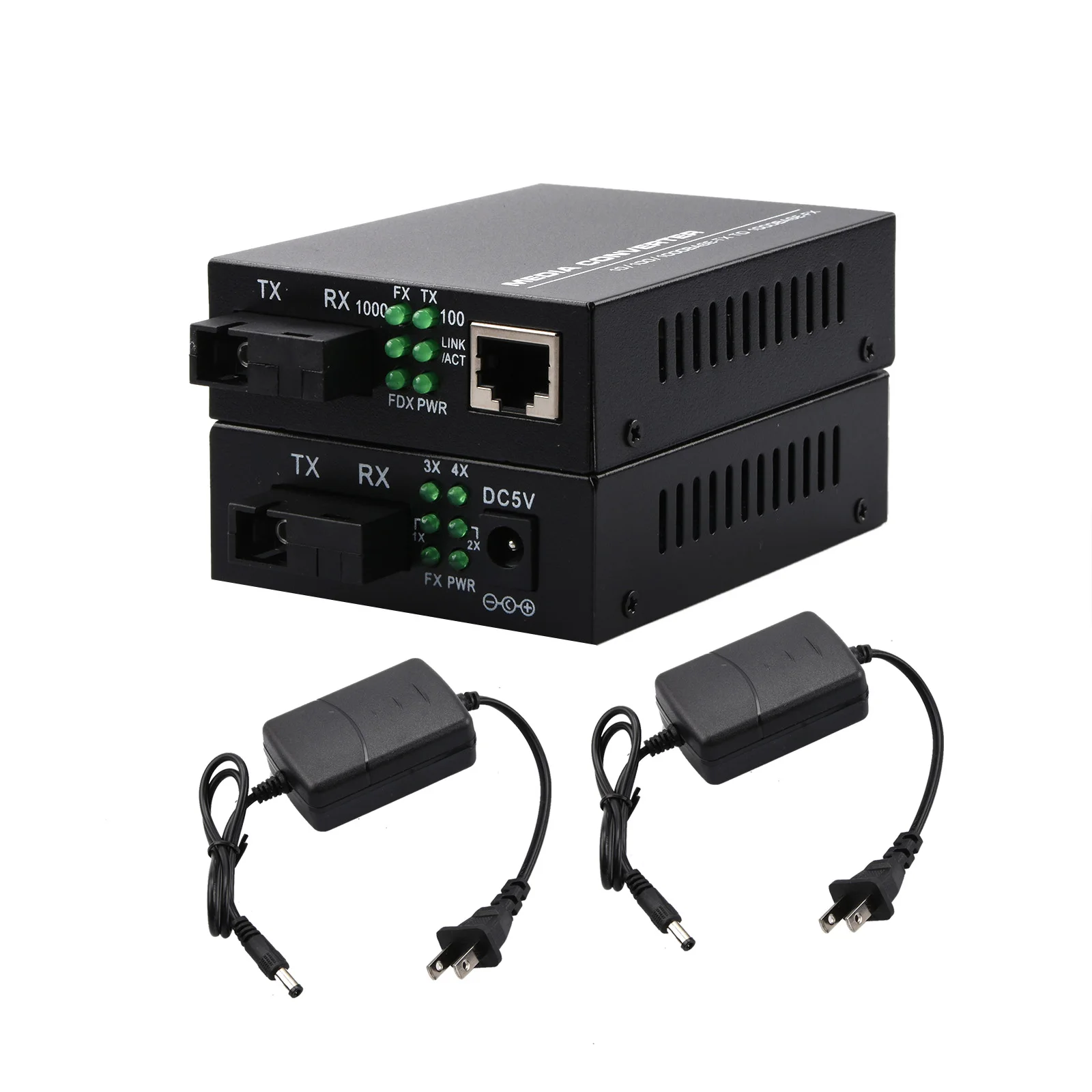

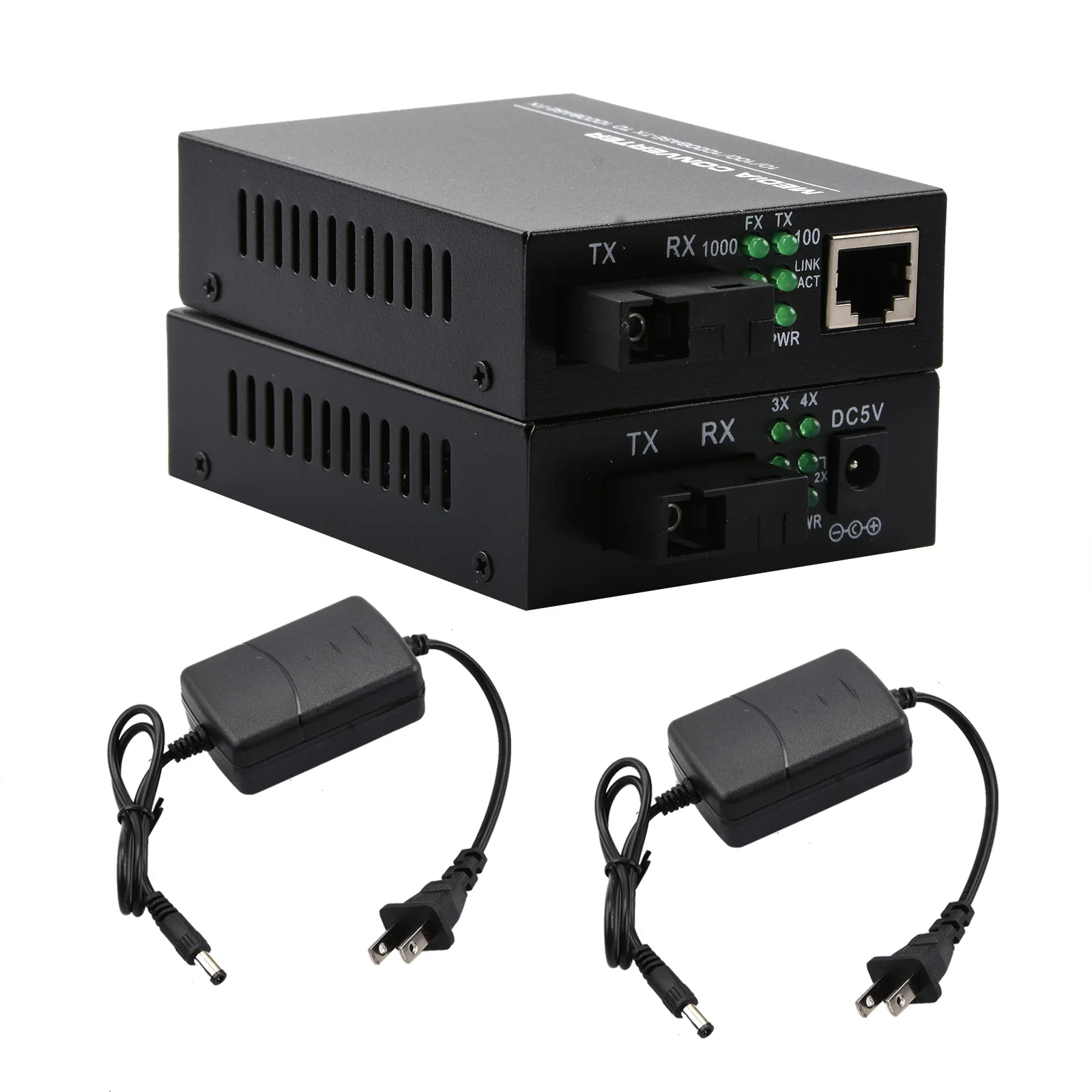

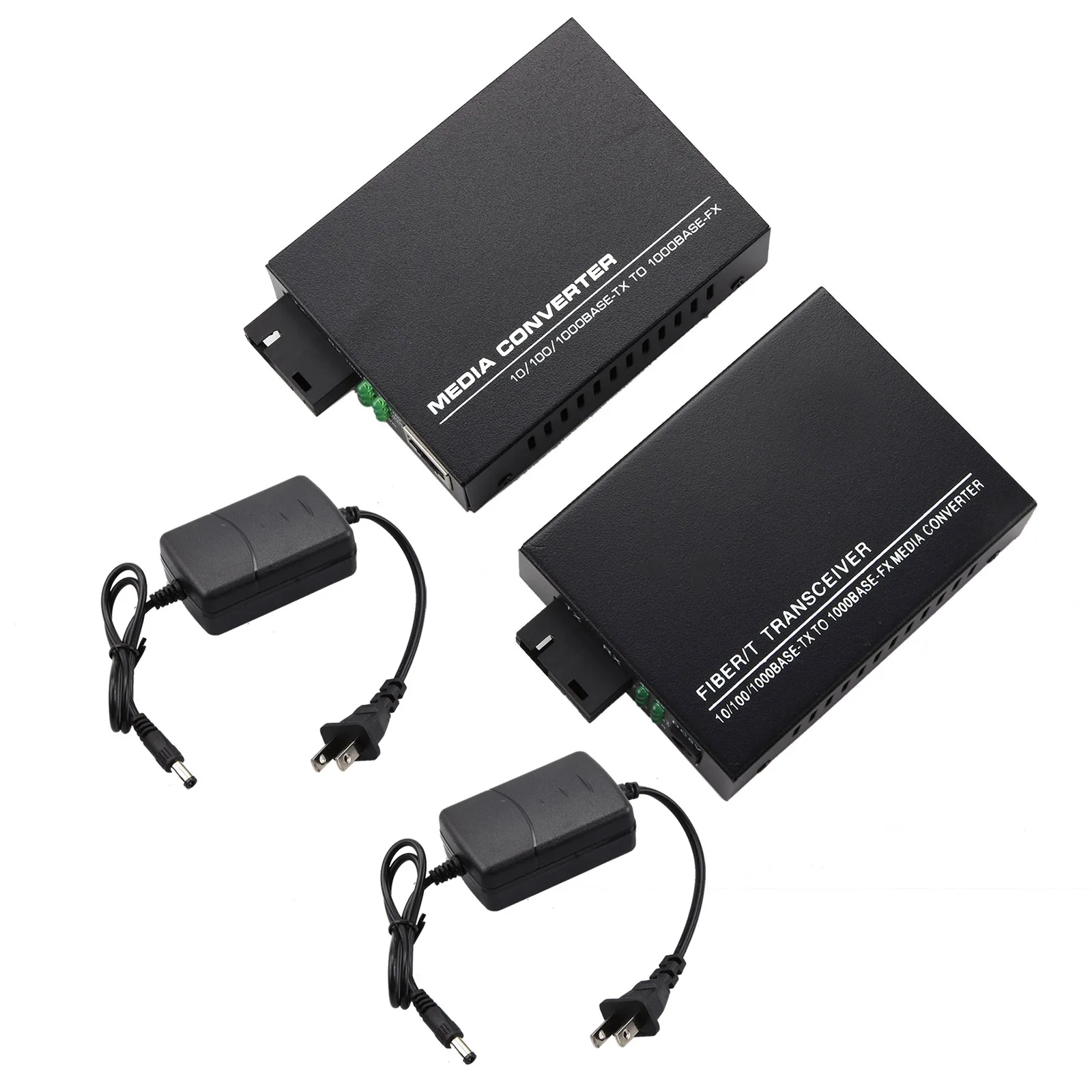

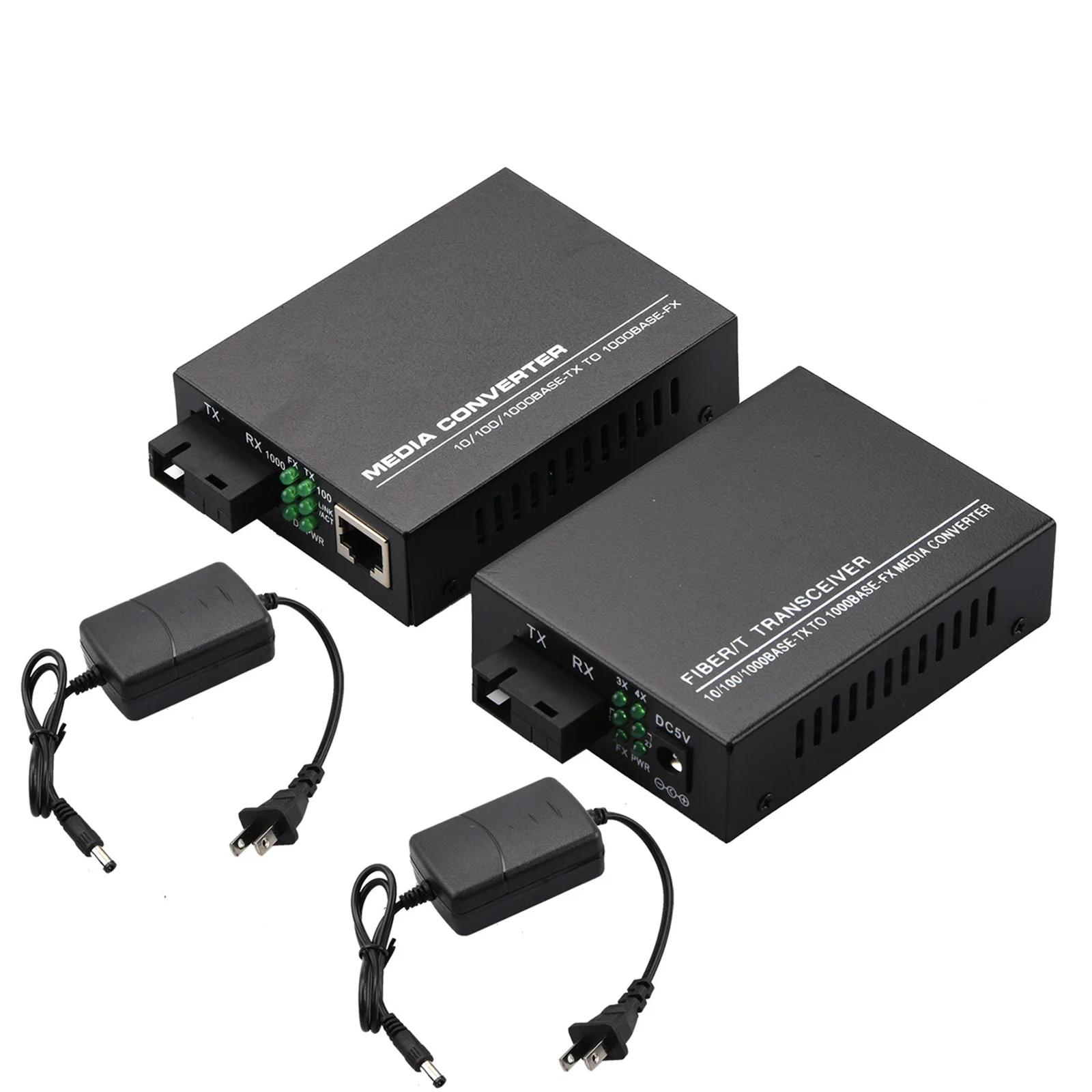

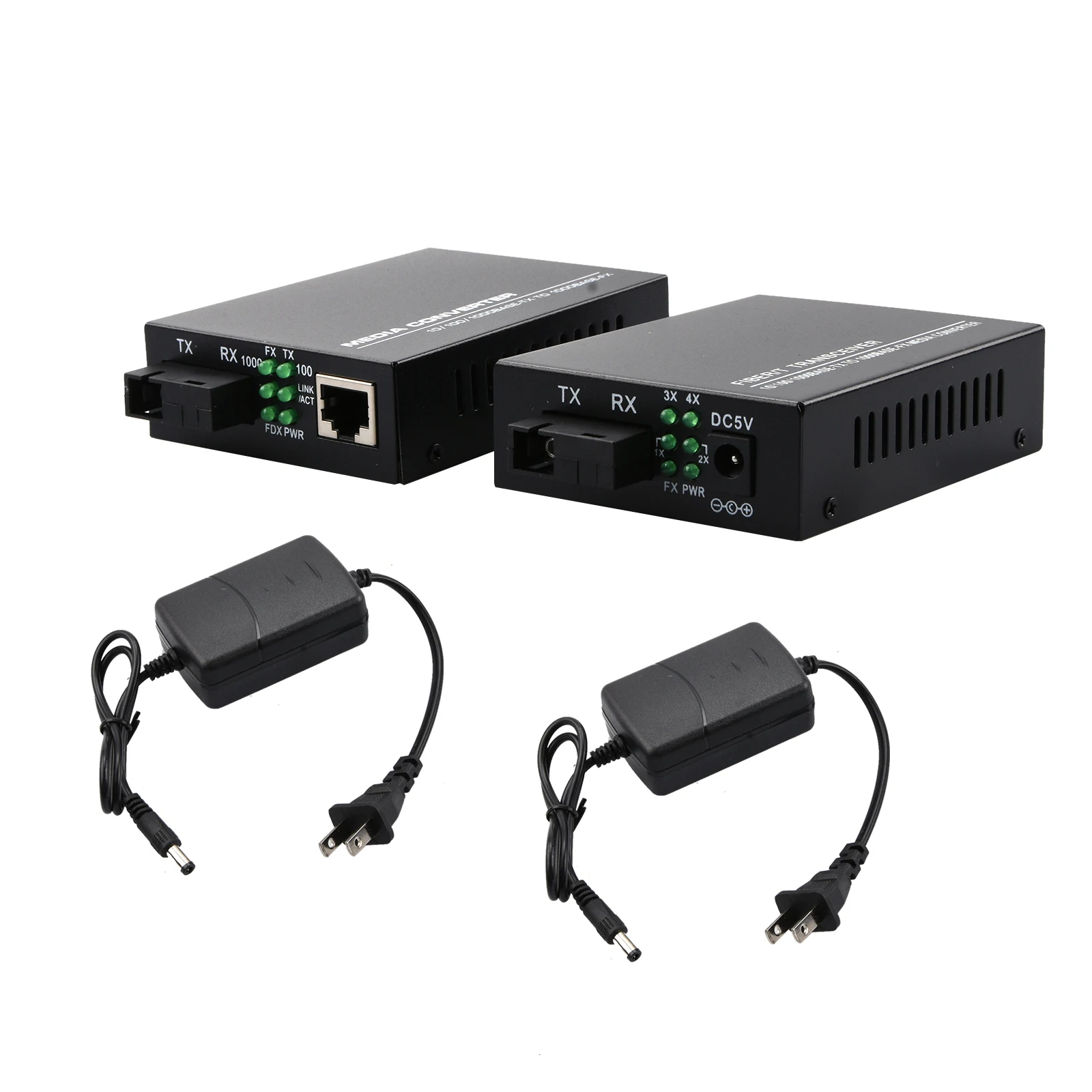

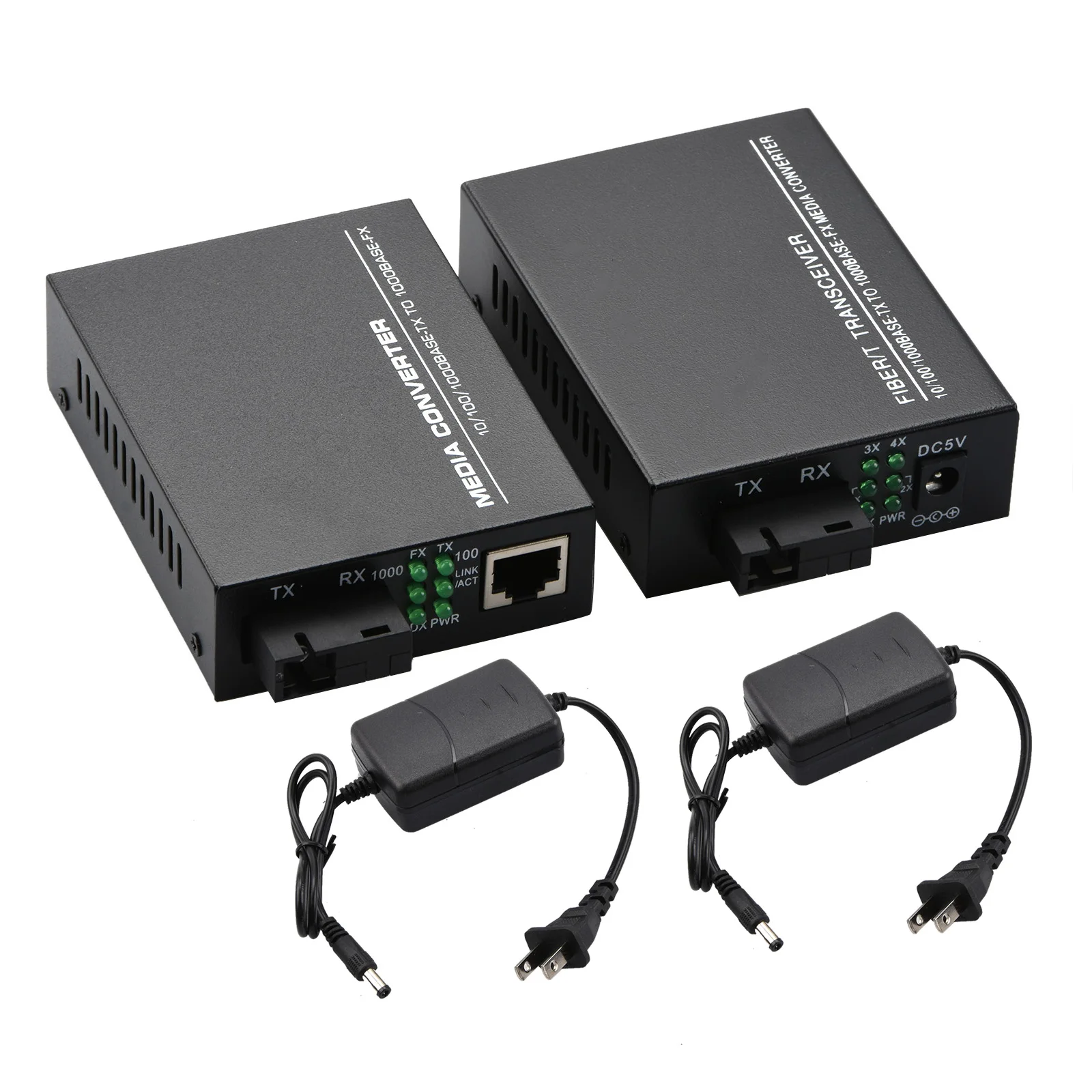

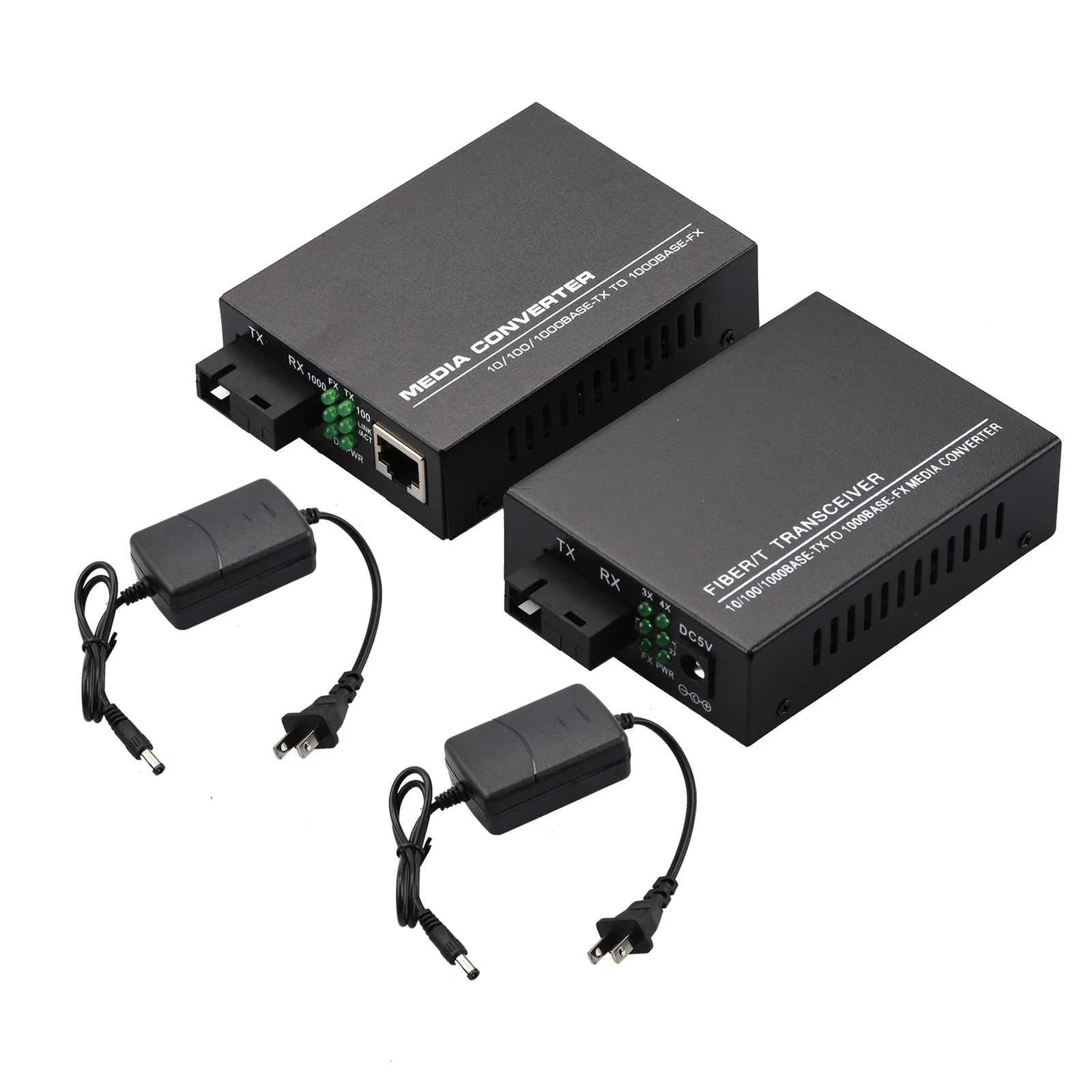

10/100/1000Mbps 1Port and 4Ports Ethernet to Fiber Optic Media Converter Single Mode 4 RJ45 and 1 SC fiber Port
Specifications:
Type: Fiber optic media converter
Product name: Media Converters
Standard: IEEE802.3/IEEE802.3U etc.
Ethernet ports support full / half duplex mode
Transmission Distance: 3km
Wavelength: 1310/1550nm
Rate: 10/100/1000M
Connector Type: RJ45
Optical fiber port: Single mode, SC
Working temperature: 0~70°C
Working humidity: 5%-95%
Storage temperature: -40°C~70°C
Storage humidity: 5%~95%(no-condensing)
Housing: Metal enclosure
Power supply: DC 5V/1A

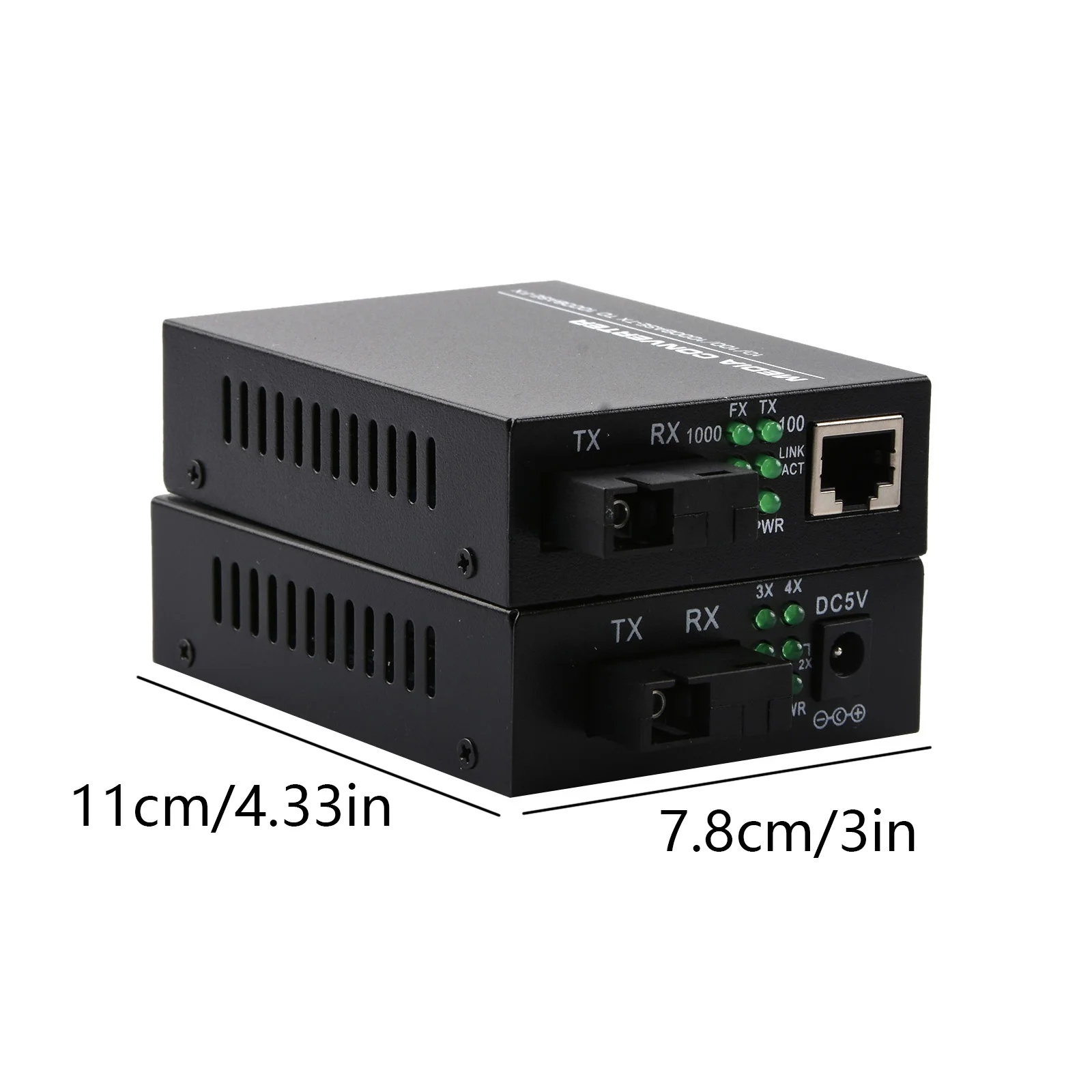

Size: 110x71x25mm
Features:
1. Support the switch between 1000Base-T and 1000Base-SX/LX
2. 1*1.25Gbps full-duplex fiber port and 1*1000M Ethernet port
3. Each port has the complete LED Indicator light for installation, commissioning and maintenance
4. Support 9K Jumbo Packet
5. Support direct forwarding mode, which support less time delay
6. Low power consumption, only 1.5W in full load condition
7. Support isolation protection function, good data security
8. Small size, suitable for installation in various places
9. Auto-negotiation low power consumption chips to ensure very longtime and stable operation

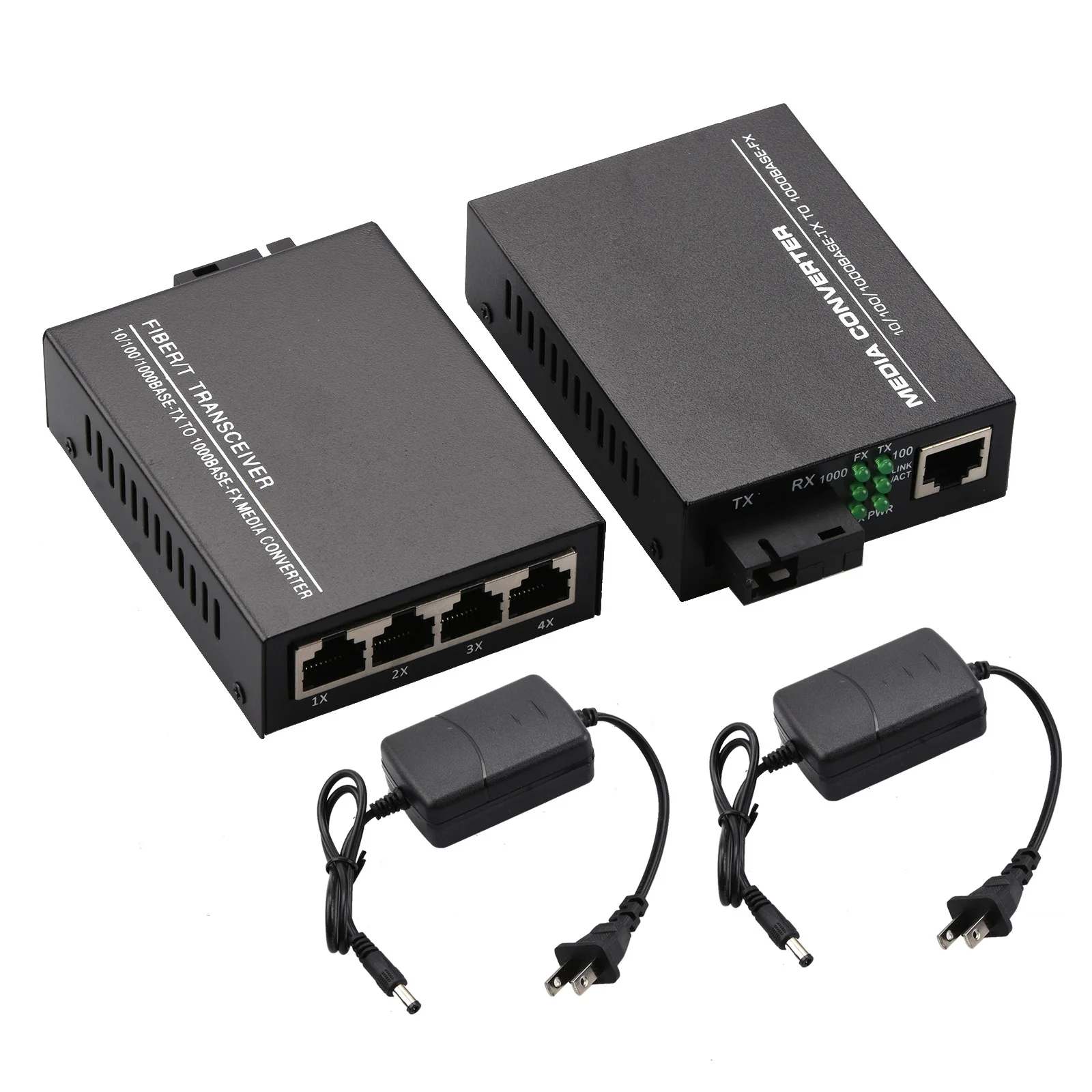

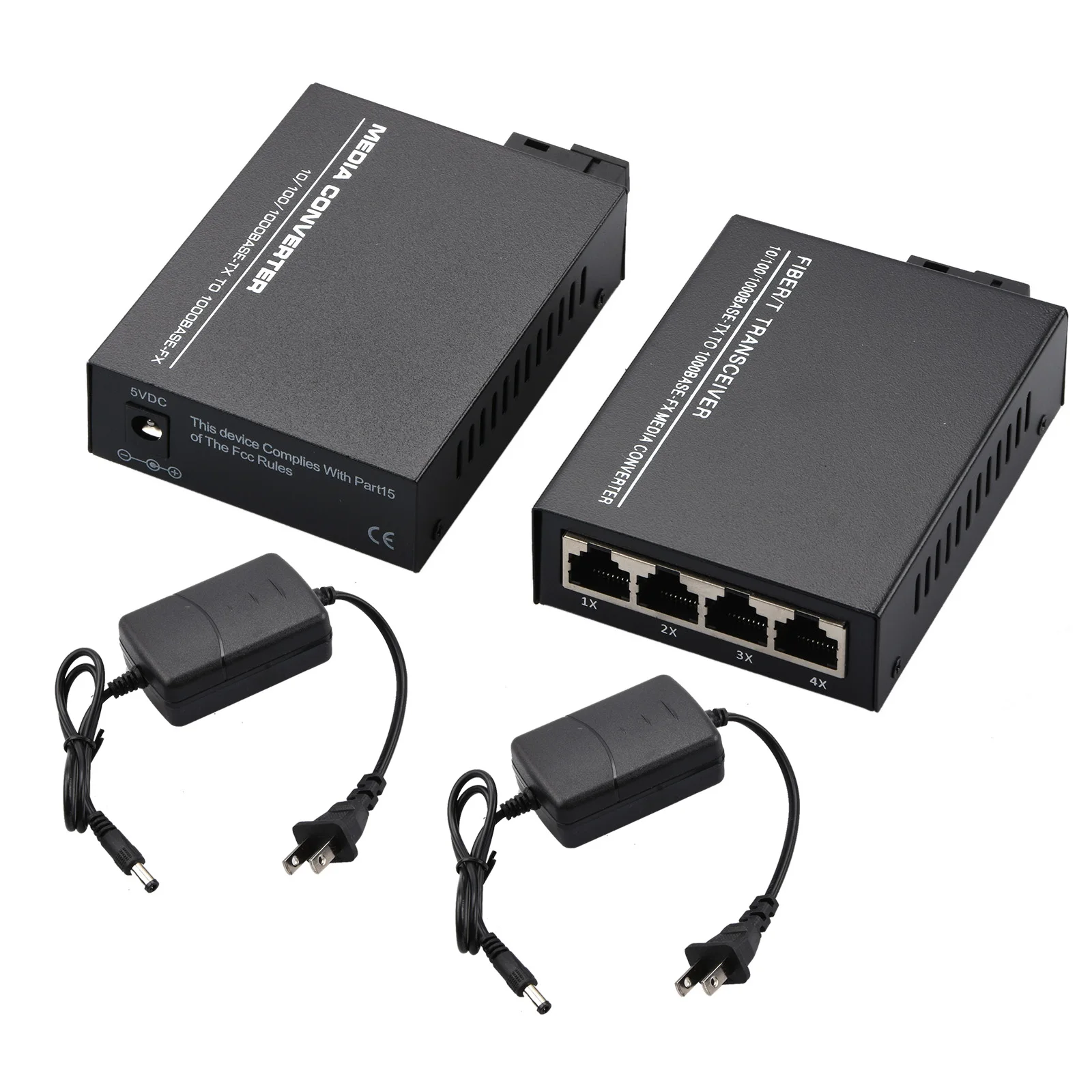

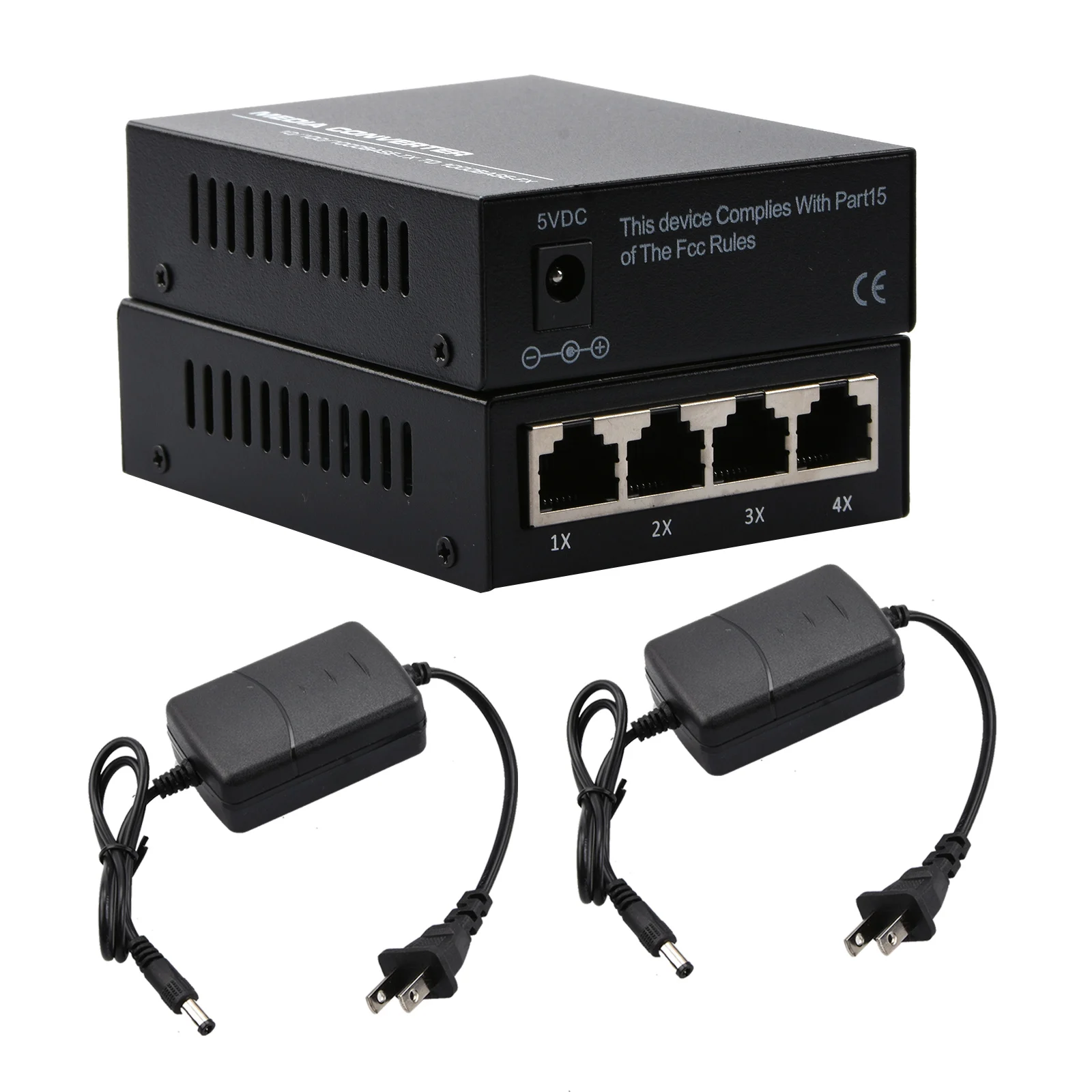

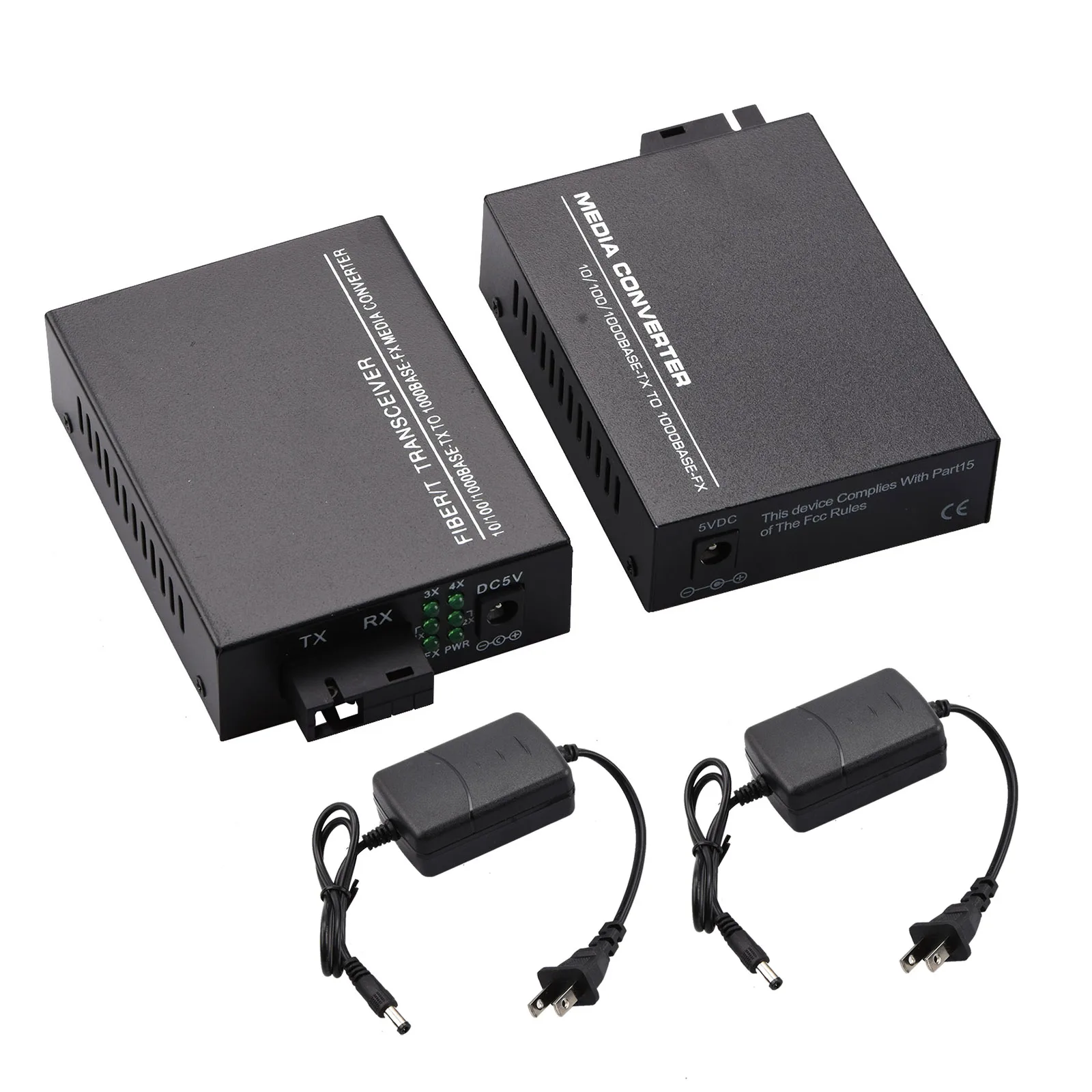

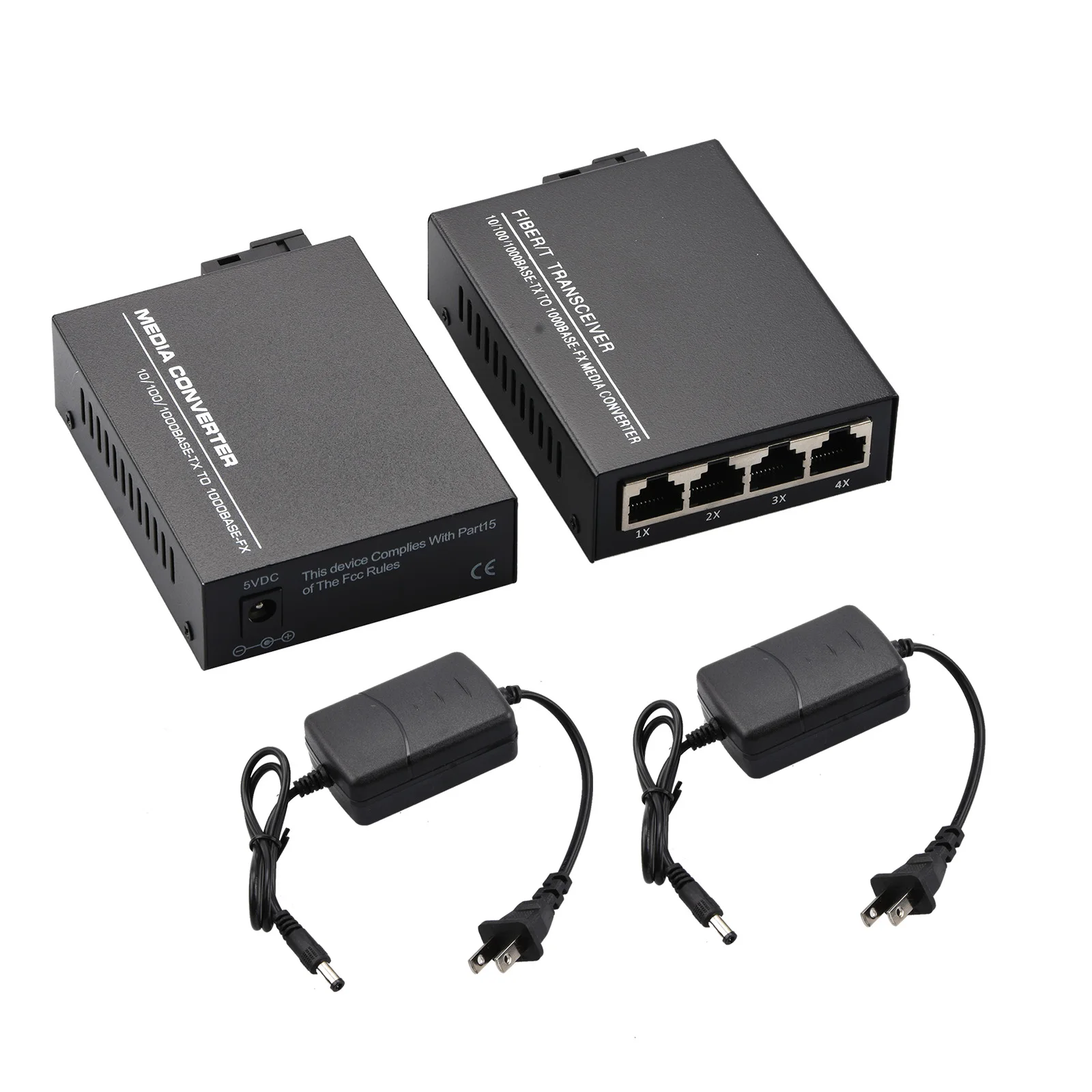

Package Included:
1x 10/100/1000M Ethernet Media Converters 1 RJ45
1x 10/100/1000M Ethernet Media Converters 4 RJ45

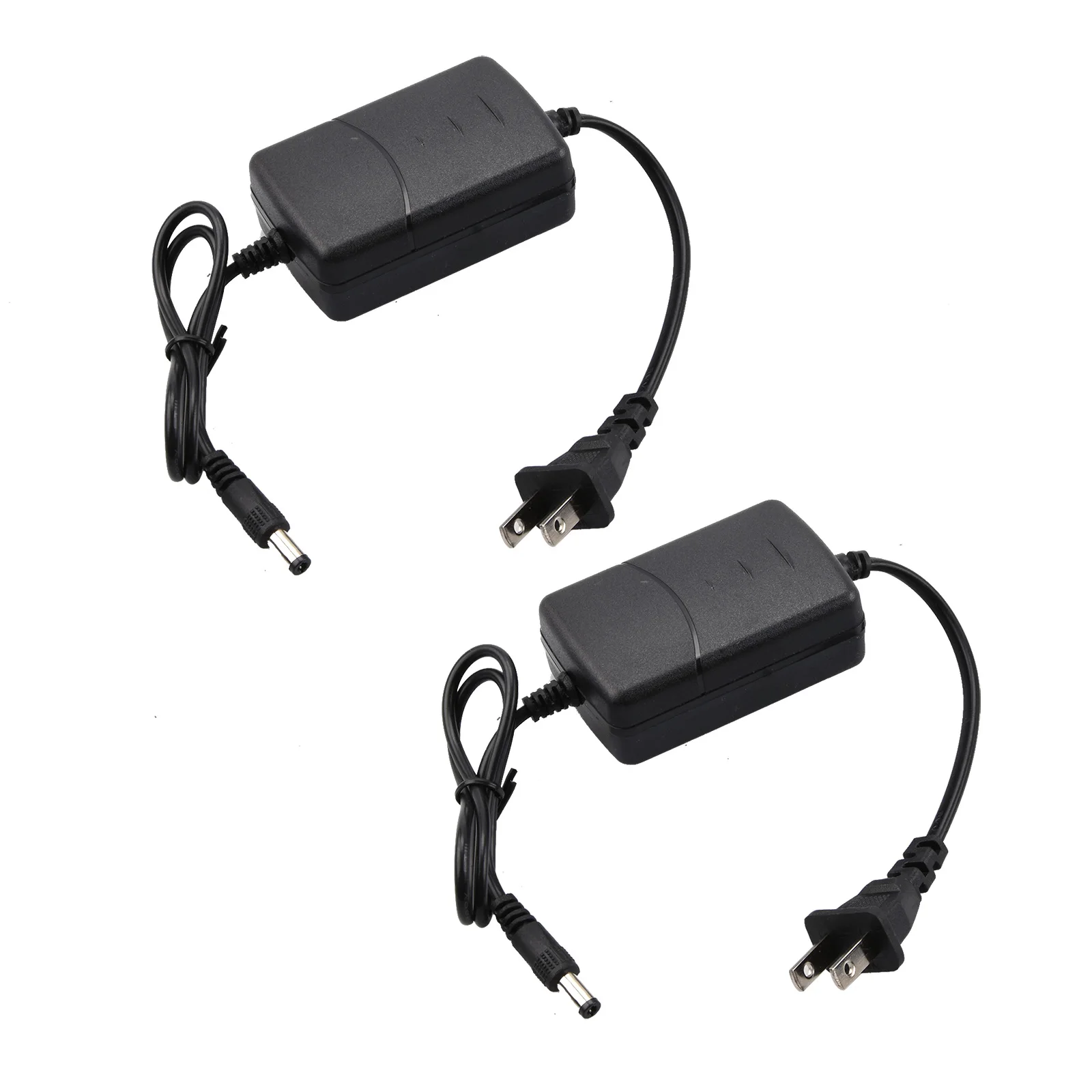

2x DC5V Power Adapter
