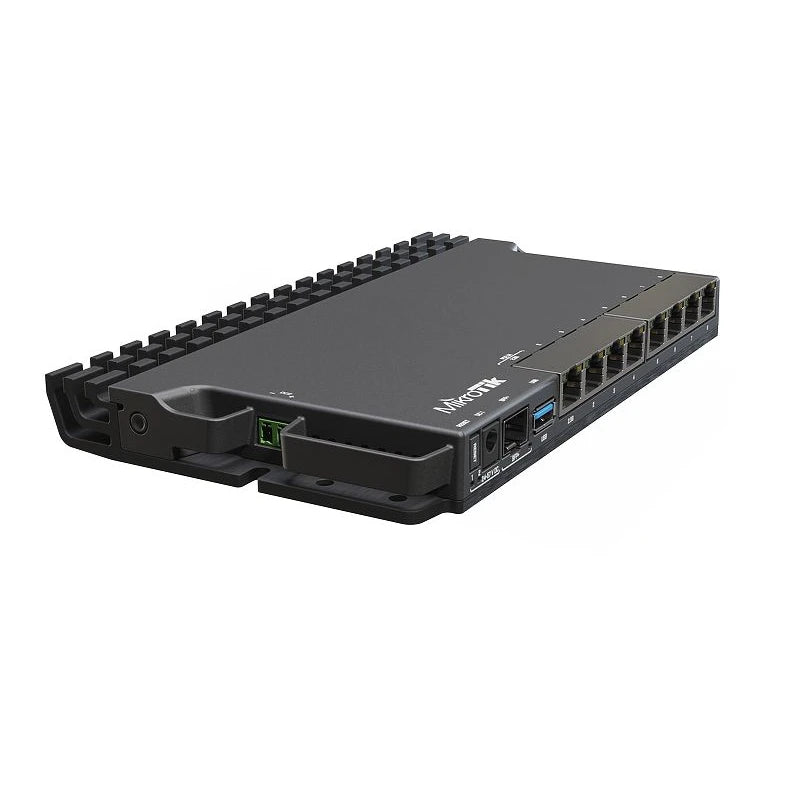

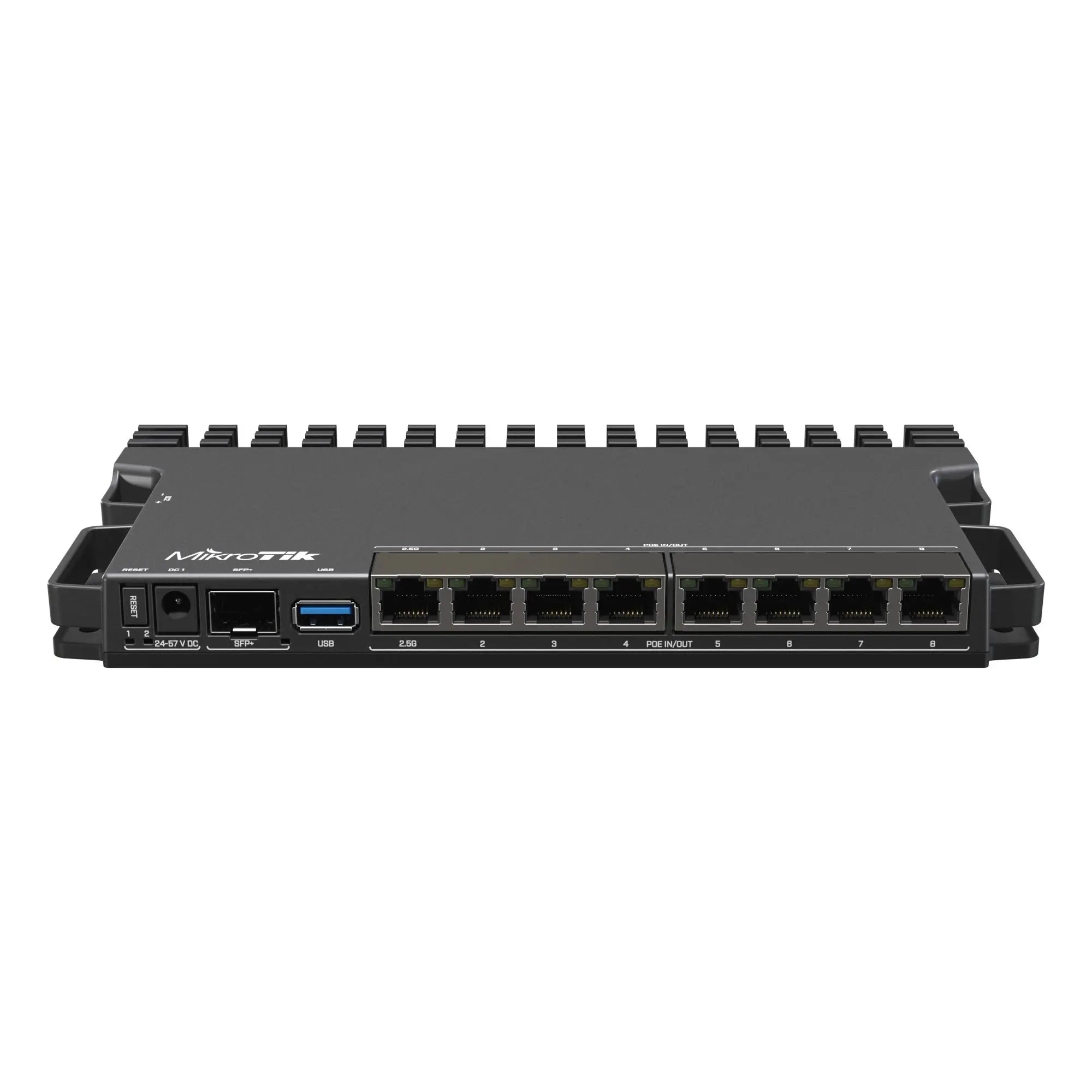

Interlink Enterprise Routing Solution – Multi-Gig Business Router with PoE In/Out, 2.5G Ethernet & 10G SFP+
R 6,004.29 ZAR
Sale price
R 6,004.29 ZAR
Regular price
R 0.00 ZAR
Specifications
Details | |
Product code |
RB5009UPr+S+IN |
Architecture |
ARM 64bit |
CPU |
88F7040 |
CPU core count |
4 |
CPU nominal frequency |
350-1400 (auto) MHz |
RouterOS license |
5 |
Operating System |
RouterOS (v7 only) |
Size of RAM |
1 GB |
Storage size |
1 GB |
Storage type |
NAND |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-40°C to 60°C |
IPsec hardware acceleration |
Yes |
Powering
Details | |
Number of DC inputs |
3 (DC jack, PoE-IN, 2-pin terminal) |
DC jack input Voltage |
24-57 V |
2-pin terminal input Voltage |
24-57 V |
Max power consumption |
150 W |
Max power consumption without attachments |
15 W |
Cooling type |
Passive |
PoE in |
802.3af/at (ether1), Mode B (ether2-ether8) |
PoE in input Voltage |
24-57 V |
PoE-out
Details | |
PoE-out ports |
Ether1-Ether8 |
PoE out |
802.3af/at |
Max out per port output (input 18-30 V) |
640 mA |
Max out per port output (input 30-57 V) |
420 mA |
Max total out (A) |
2.59 A |
Total output current |
2.28 |
Total output power |
130 |
Ethernet
Details | |
10/100/1000 Ethernet ports |
7 |
Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
Number of 2.5G Ethernet ports |
1 |
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) |
1 |
Fiber
Details | |
SFP+ ports |
1 |
Peripherals
Details | |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB 3.0 type A |
Max USB current (A) |
1 |
Other
Details | |
CPU temperature monitor |
Yes |
Current Monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Certification & Approvals
Details | |
Certification |
CE, EAC, ROHS |
IP |
20 |
