R 375.31 ZAR

R 375.31 ZAR R 0.00 ZAR

◆ POE Switch supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras

◆ 1000mbps switch have Port 1 to port 4 compatible with IEEE802.3af/at

standard power

◆ Supply (Maximum power of each port is 30W)

◆ 4x 10/100 /1000Mbps automatic adjustment RJ45 ports ethernet switch

◆ Meets the standards of the IEEE 802.3 /IEEE

802.3u/IEEE 802.3z and IEEE 802.3ab

◆ Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard

◆ Auto-flip ports (Auto MDI/MDIX)

◆ Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)

◆ Maximum PoE Power: 65W

◆ Store-and-forward architecture, 192K forwarding memory

◆ All ports support wire-speed switching, frame size

within the range of 64 to 1536 can achieve wire-speed

◆ Wall-mounted design, easy to install and use

◆ Automatic adjustment, plug and play, no need software and protocol conversion

Ordering Note: Default PoE power supply type is end-span(12, 36 line pair),

mid-span(12, 36 line pair) optional

SFP module isn’t include in the accessories, pls order it seperatly

Technical parameter list

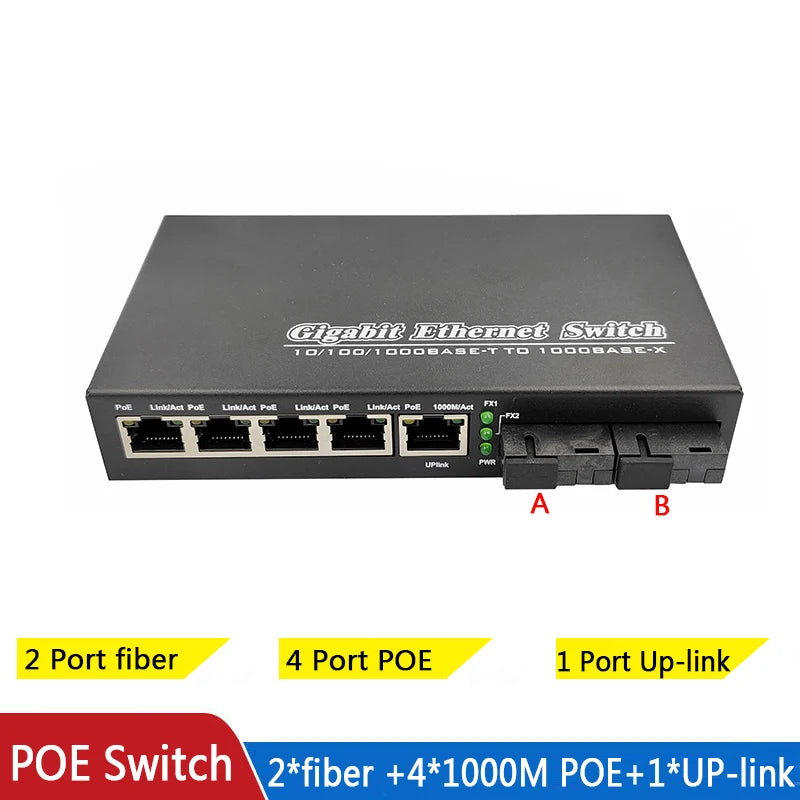

Product Name	6-PortS PoE Switch with 4 PoE Ports and 1 Ethernet Uplink and 1 Uplink SFP
Model	jYD
Connector Type	6 x 10/100/1000M copper cable RJ45 ports( 4 PoE ports + 1 Ethernet Uplink + 1 Uplink SFP Port)
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX : Cat6 or more (≤100 meter)
Bandwidth	12Gbps (non-blocking)
Address Database Size	2K
MTBF	190,000 hours
Forwarding Mode	Store-And-Forward
Network Protocols	IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
LED Display	System: power supply; Every Port: connecting, PoE working status
Power Supply	Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports	Port 1-4 support POE
PoE Port Power	15.4W/30W for each PoE port
PoE Standard	IEEE 802.3AF/AT
PoE Feature	All ports support MDI/MDIX
Working Environment	Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Certification	CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation	CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance	Depend on SFP module
